PRO-SET^® Process Equipment

PRO-SET^® Metering Equipment

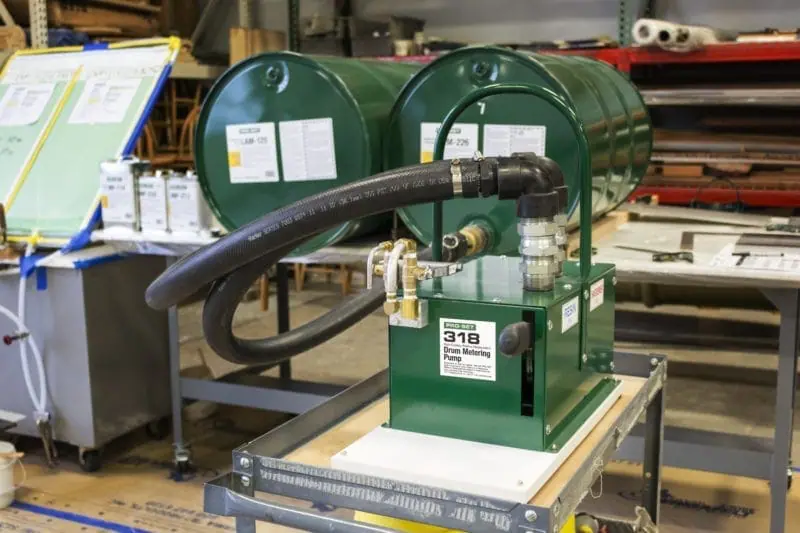

The PRO-SET^® 308 and 318 Positive Displacement Pump will dispense all of the infusion and laminating resins and hardeners accurately at 3:1 by volume. Each pump stroke will dispense properly metered epoxy at a rate of 3.8 litres/minute. The 308 resin reservoir will hold 7.6 litres and the hardener reservoir will hold 3.8 litres.

The 318 pump is designed to be connected to PRO-SET barrels or IBC’s via chemical resistant hoses and plumbing fittings available at most hardware stores.

All PRO-SET infusion and laminating resins and hardeners can also be batch measured and dispensed at a 3:1 volume ratio with larger dispensing systems. View Technical Data Sheet to confirm the proper ratio by weight.

PRO-SET Dispensing Guns

A range of adhesive dispensing guns suitable for use with PRO-SET epoxy.

300-X MANUAL DISPENSING GUN

This manually operated, two-component dispenser is used with PRO-SET Adhesive cartridge sets to apply adhesive quickly, cleanly, and accurately. The handle and trigger are die cast aluminium and is shaped for comfortable operation. A 26:1 mechanical advantage dispenses the high-viscosity adhesive with ease and the gun’s heavy-duty construction enables precise adhesive application and long operating life.

300-MW MIXING WANDS

Static mixing wands attach to the adhesive set cartridges to thoroughly blend resin and hardener components as they are dispensed. The tip can be trimmed to apply the appropriate sized bead of adhesive mixture. One wand is supplied with each adhesive cartridge set. Additional wands are available.

QUALITY CONTROL DYE

Dyed resins and hardeners provide an easy, reliable method for quality assurance. Yellow dyed resin and blue dyed hardener, when mixed thoroughly, produce a consistent green tinted epoxy mixture. A streaked mixture indicates insufficient mixing. Bulk orders of resin and hardener can be dyed on request at the Wessex Resins factory before shipping. Adhesives also have the option of BK (Black).
